Router wall mounting information

All Keenetic router models have a wall mount option. There are two holes on the back of the case.

NOTE: Important! Mounting elements (self-tapping screws and wall plugs) are not included with the router. The only exception is for the Orbiter Pro and Voyager Pro models, which include 2 self-tapping screws with two dowels for concrete wall and plasterboard.


Information on mounting hole spacing and screw specifications:

Model Titan, Peak DSL, Hero, Hero DSL, Hero 4G, Hopper, Sprinter Skipper Speedster, Carrier, Carrier DSL, Runner 4G Orbiter Pro, Voyager Pro
Distance
between holes
128 mm 75 mm
67 mm
82 mm
Head diameter 6-8 mm 5-6 mm
Head height up to 1.5-2 mm
Thread 3-4 mm
3 mm
Thread length at least 20 mm

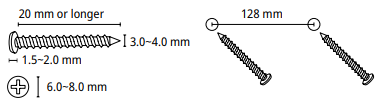

For example, for the larger Keenetic Giant, Titan, Peak DSL, Hero, Hero DSL, Hero 4G models:

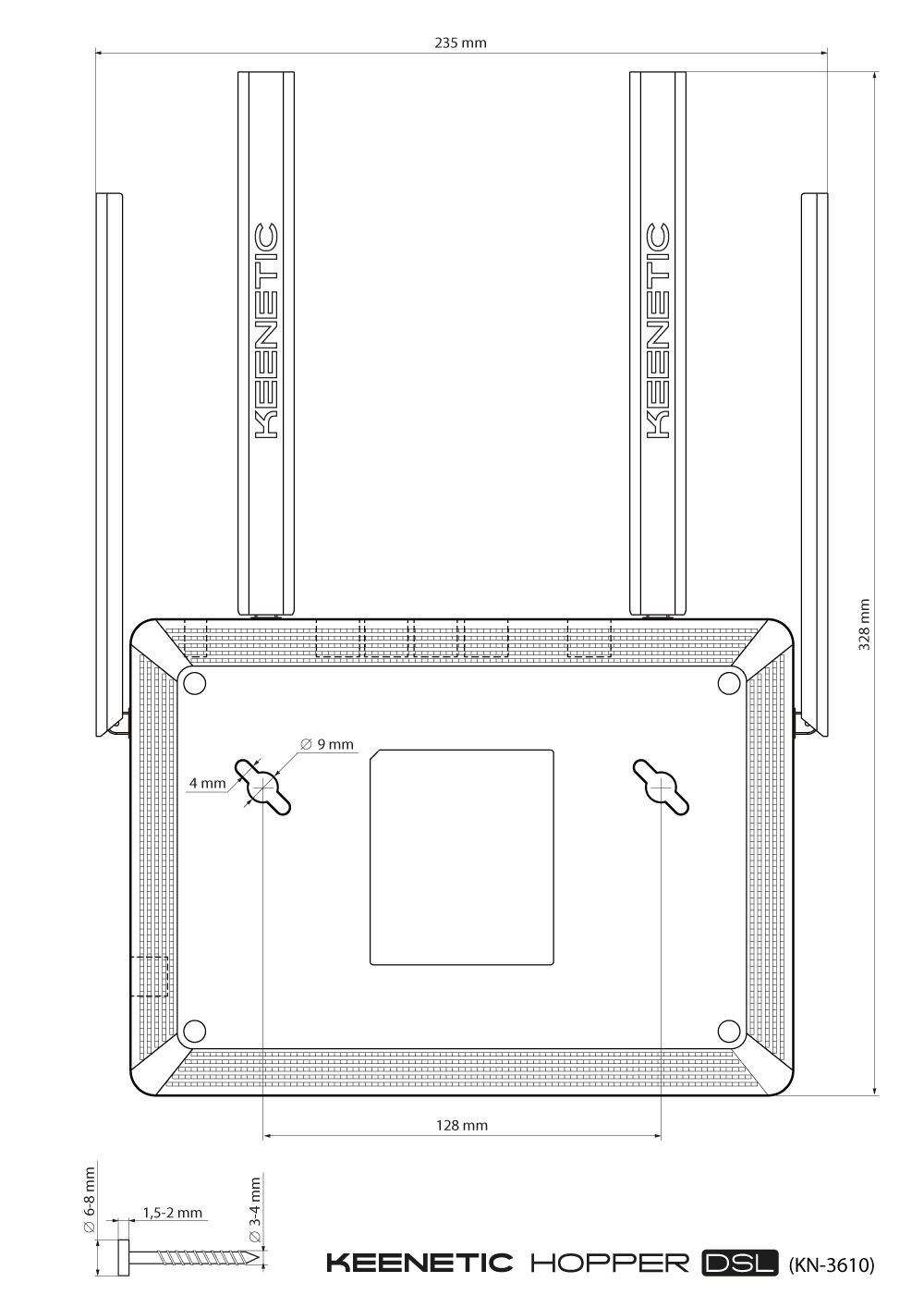

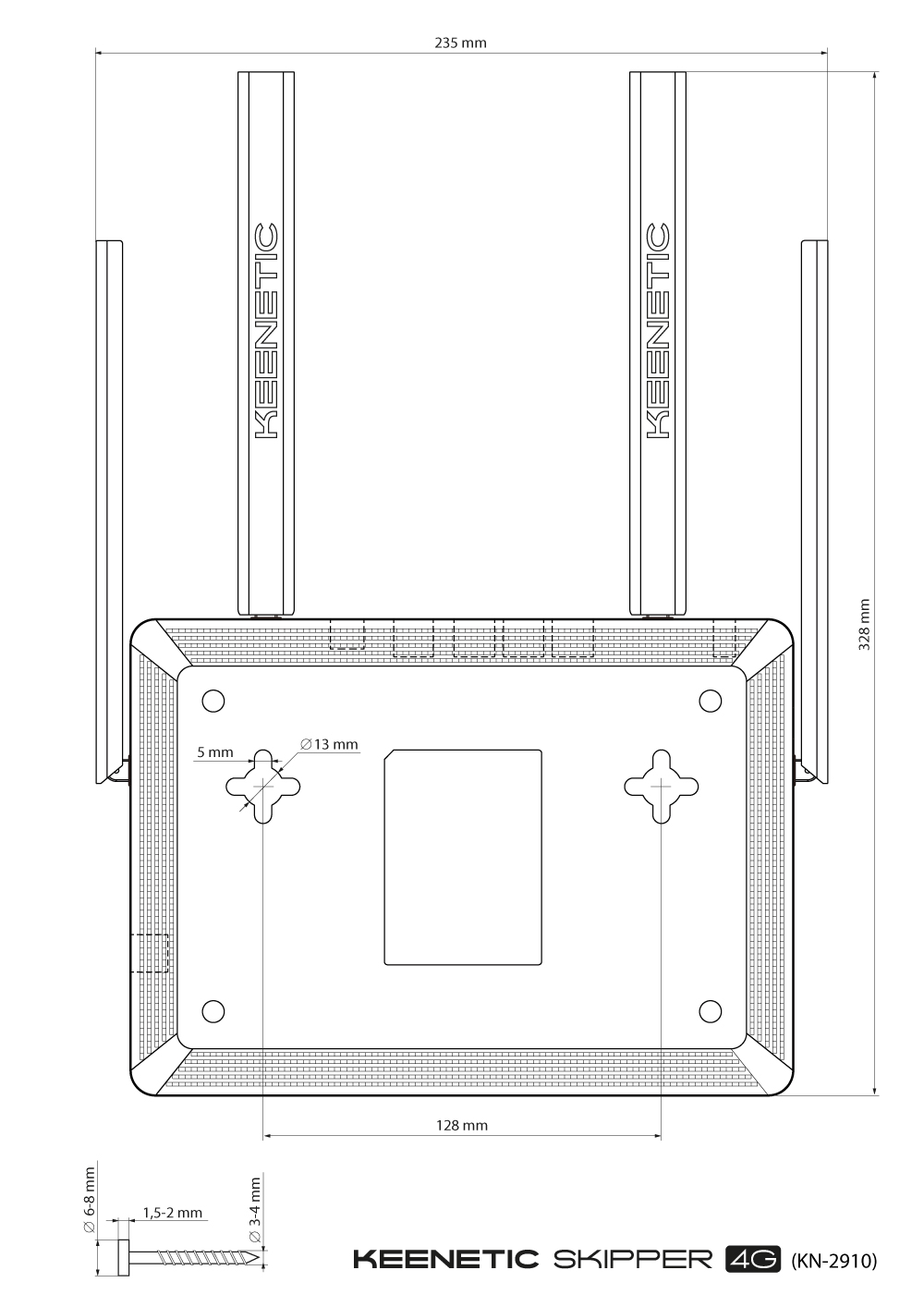

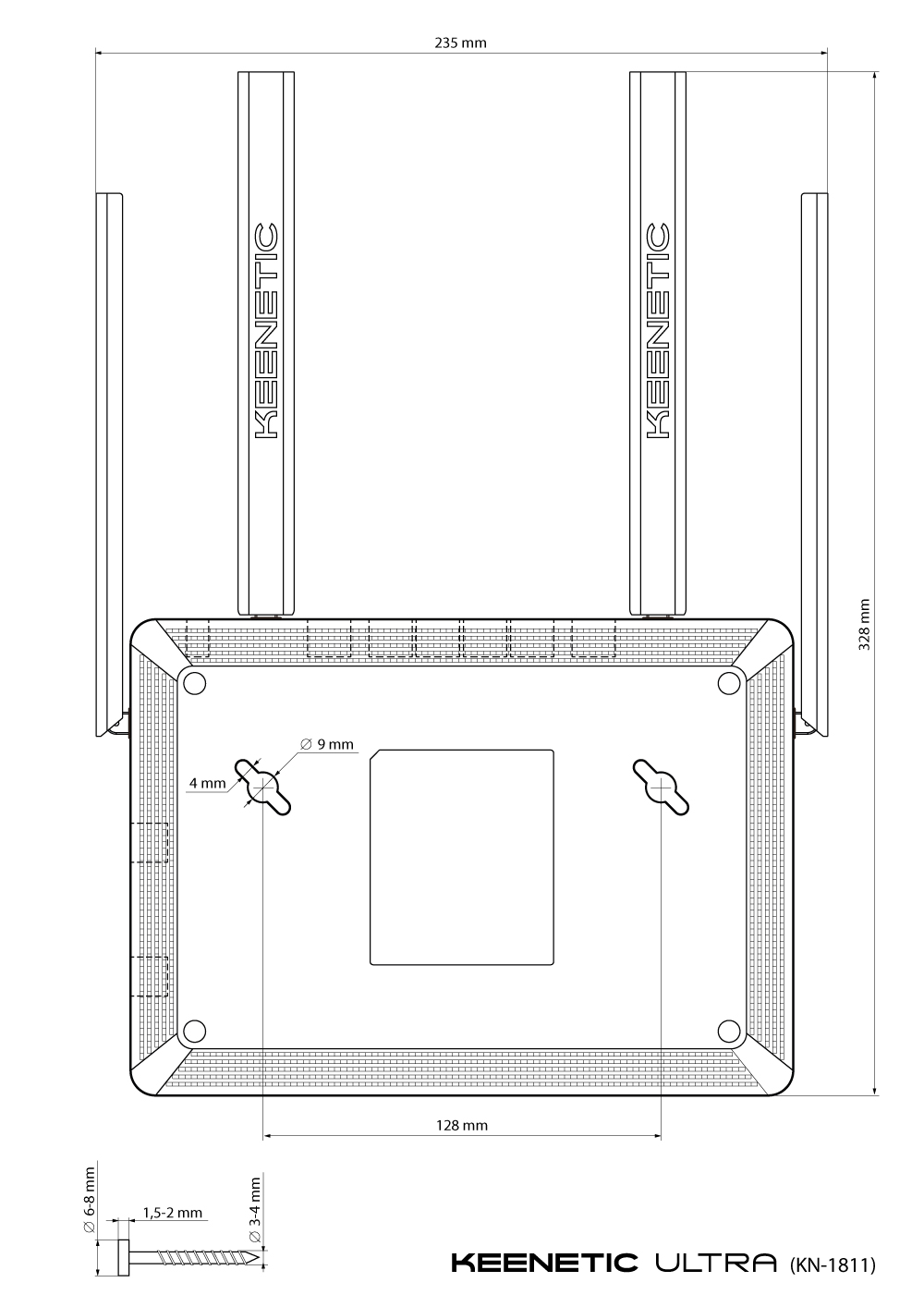

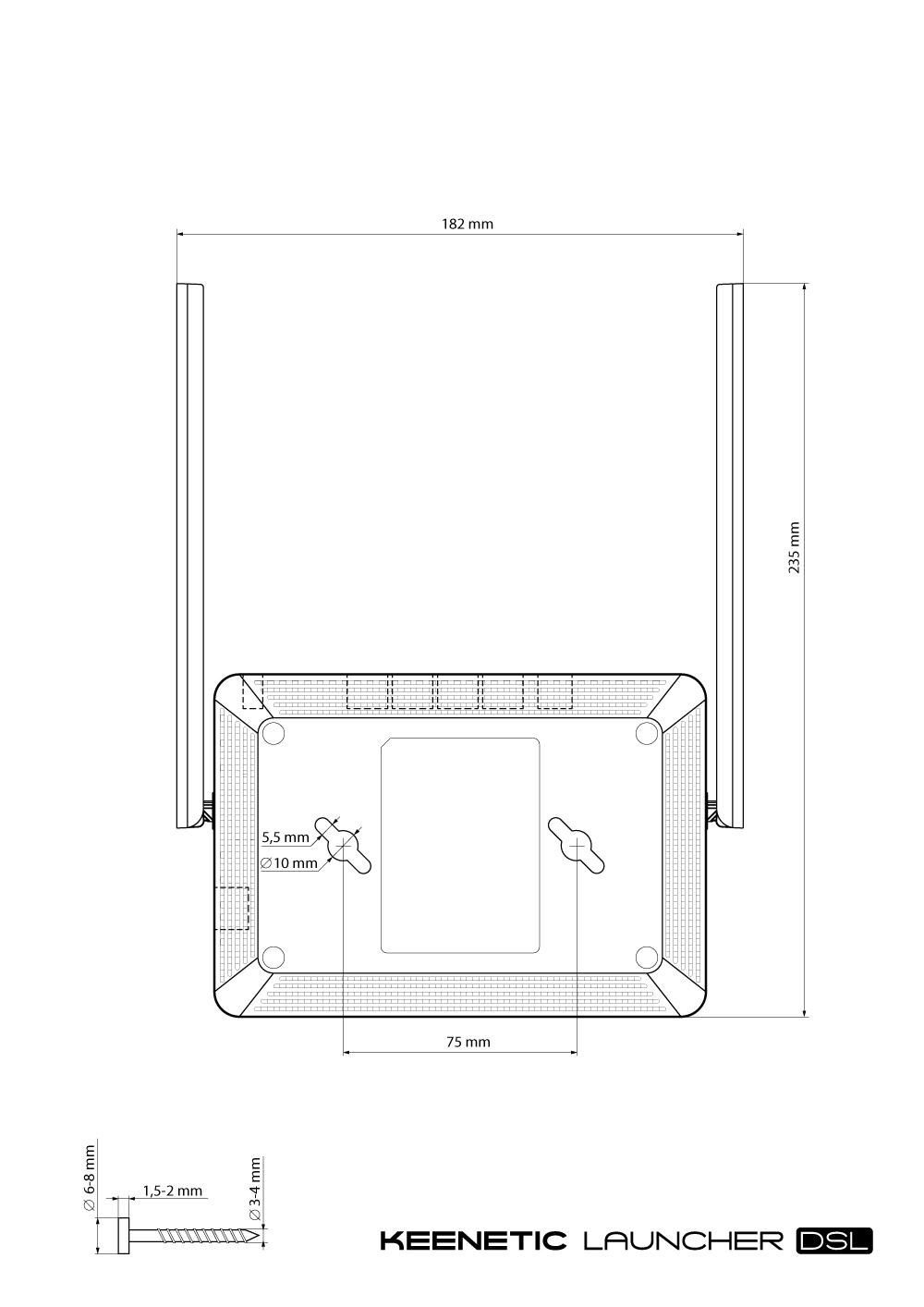

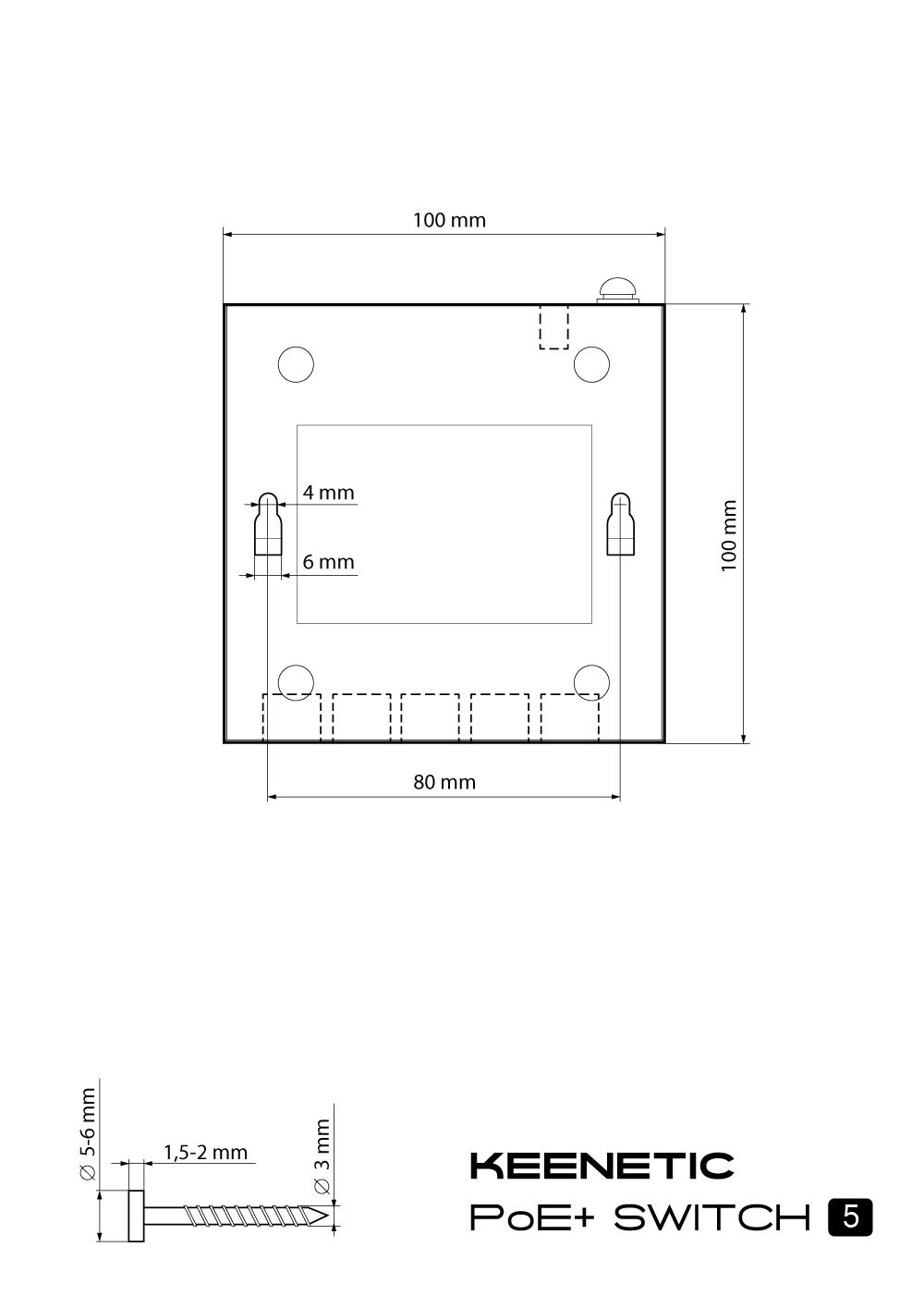

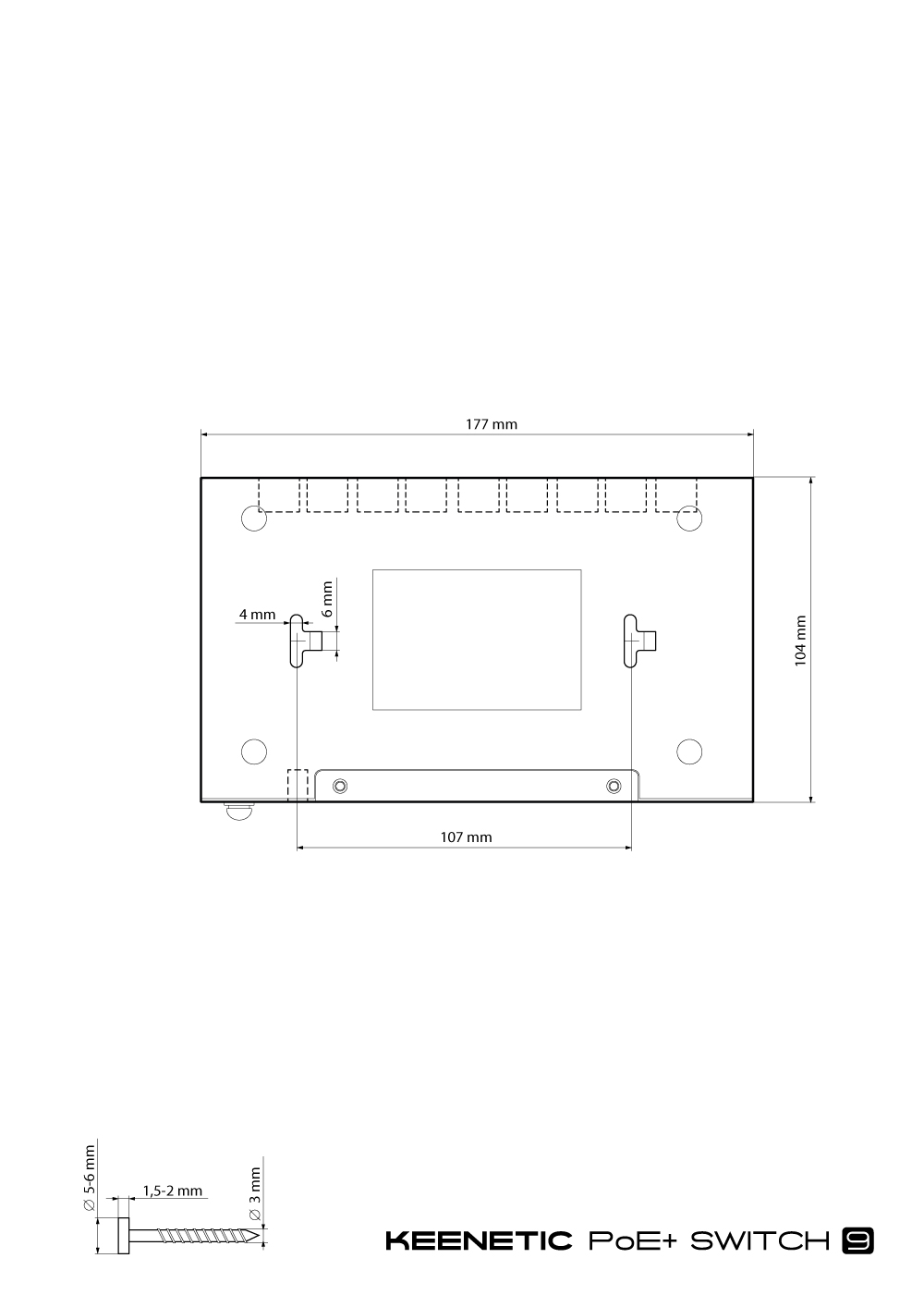

Below are the wall mounting templates (pdf format) for all current models:



TIP: Note: Mounting Orbiter Pro / Voyager Pro to wall and ceiling.

Orbiter Pro and Voyager Pro can be placed on a flat surface or attached to a wall or solid ceiling using the supplied mounting kit, it can also be fitted to suspended ceilings by using the mounting kit together with T-rail clips.

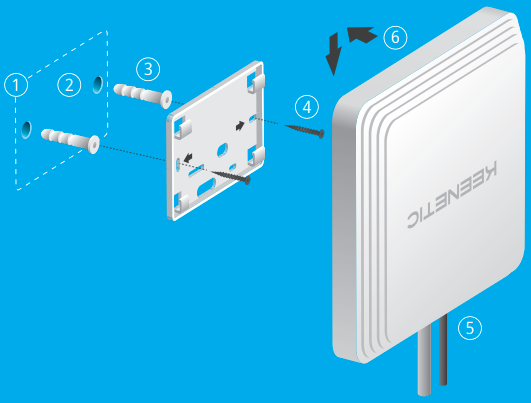

Mounting to a Wall or Solid Ceiling
1. Place the mounting bracket in the desired position. Be attentive to any existing electrical or network cabling.
2. Mark two screw hole positions. Drill a 6 mm diameter hole in each of the marked spots.
3. Insert the ribbed plastic wall plugs into the holes. Or, in the case of a drywall surface, screw the drywall anchors in with a screwdriver.
4. Secure the mounting bracket to the wall or ceiling by driving the self-tapping screws into the anchors.
5. Connect the Ethernet cable(s) and/or power adapter to the Keenetic device.
6. Attach the Keenetic device to the mounting bracket and move it in the direction of the arrows until it locks into place.

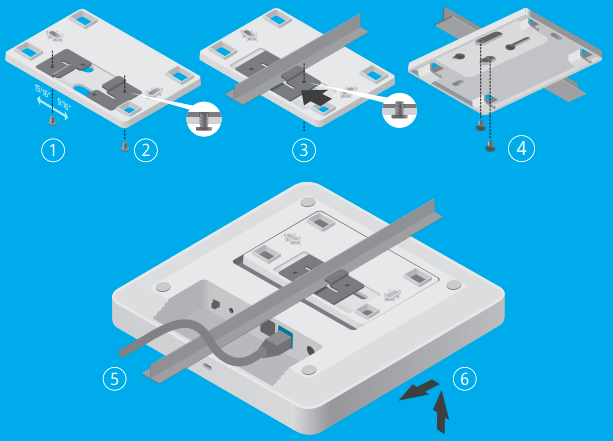

Mounting to a Suspended Ceiling Using T-rails
1. Secure the first T-rail clip to the mounting bracket with a screw. Depending on the T-rail size, use the 9/16” (14.3 mm) or 15/16” (23.8 mm) position.
2. Hook the second T-rail clip to the mounting bracket. Do not tighten the screw at this time.
3. Position the mounting bracket on the T-rail by placing the first T-rail clip on the rail base and pushing the second clip toward the rail base. Tighten the second screw.
4. Secure the mounting bracket to the T-rail with the two remaining screws.
5. Connect the cables to the Keenetic device.
6. Attach the Keenetic device to the mounting bracket and move it in the direction of the arrows until it locks into place. Adjust the cables so that the exposed parts are hidden behind the case.
