IP addresses are used to identify devices on a network. To communicate with other devices on the network, an IP address must be assigned to each network device (including computers, servers, routers, printers, etc.). Such devices on a network are called hosts.
A subnet mask determines the maximum possible number of hosts on a particular network. In addition, subnet masks allow you to divide one network into several subnets.
Contents:
Introduction to IP addresses
Subnet masks
Making subnets
Example of calculating the number of subnets and hosts in a subnet based on IP address and subnet mask
One part of the IP address is the network number (ID), and the other is the host ID. Just as different houses on the same street have the same street name in their address, hosts on a network have a common network number in their address. And just as different houses have their own house number, each host on the network has its own unique identification number - the host ID. The network number is used by routers to send packets to the correct networks, while the host ID identifies the specific device on that network to which packets should be delivered.
Structure
An IP address consists of four parts, written as decimal numbers with dots (e.g. 192.168.1.1). Each of these four parts is called an octet. An octet represents eight binary digits (e.g., 11000000 or 192 in decimal form).
Thus, each octet can take values from 00000000 to 11111111 in binary or 0 to 255 in decimal.
The following figure shows an example of an IP address in which the first three octets (192.168.1) represent the network number, and the fourth octet (16) represents the host ID.
Figure 1: Network number and host ID
The number of binary digits in the IP address that go to the network number and the number of digits in the address that go to the host ID can differ depending on the subnet mask.
Private IP addresses
Each host on the Internet must have a unique address. If your networks are isolated from the Internet (for example, linking two branch offices), you can easily use any IP address for the hosts. However, the Internet Assigned Numbering Authority (IANA) has reserved the following three blocks of IP addresses specifically for private networks:
- 10.0.0.0 — 10.255.255.255
- 172.16.0.0 — 172.31.255.255
- 192.168.0.0 — 192.168.255.255
IP addresses on these private subnets are sometimes called 'local' addresses.
IP addresses can be obtained through IANA from your ISP, or you can assign them yourself from the private network address range.
The subnet mask is used to determine which bits are part of the network number and which are part of the host ID (the logical conjunction operation 'AND' is used for this purpose).
The subnet mask includes 32 bits. If a bit in the subnet mask is '1', then the corresponding bit of the IP address is part of the network number. If a bit in the subnet mask is '0', the corresponding bit of the IP address is part of the host ID.
Table 1. Example of allocation of network number and host identifier in an IP address
| 1st octet: (192) | 2nd octet: (168) | 3rd octet: (1) | 4th octet: (2) | |
| IP address (binary) | 11000000 | 10101000 | 00000001 | 00000010 |
| Subnet mask (binary) | 11111111 | 11111111 | 11111111 | 00000000 |
| Network number | 11000000 | 10101000 | 00000001 | |
| Host ID | 00000010 |
Subnet masks always consist of a series of consecutive 1s, starting with the leftmost bit of the mask, followed by a series of consecutive zeros for a total of 32 bits.
A subnet mask can be defined as the number of bits in the address representing the network number (the number of bits with a value of '1'). For example, an '8-bit mask' is a mask in which 8 bits are ones, and the remaining 24 bits are zeros.
Subnet masks are written in decimal numbers with dots, just like IP addresses. The following examples show the binary and decimal notation of the 8-bit, 16-bit, 24-bit, and 29-bit subnet masks.
Table 2. Subnet Masks
| Binary 1st octet: |
Binary 2nd octet: |
Binary 3rd octet: |
Binary |
Decimal | |
| 8-bit mask | 11111111 | 00000000 | 00000000 | 00000000 | 255.0.0.0 |
| 16-bit mask | 11111111 | 11111111 | 00000000 | 00000000 | 255.255.0.0 |
| 24-bit mask | 11111111 | 11111111 | 11111111 | 00000000 | 255.255.255.0 |
| 29-bit mask | 11111111 | 11111111 | 11111111 | 11111000 | 255.255.255.248 |
Network size
The number of bits in the network number determines the maximum number of hosts that can be on such a network. The more bits in the network number, the fewer bits are left for the host ID in the address.
An IP address with a host ID of all zeros represents the IP address of the network (192.168.1.0 with a 24-bit subnet mask, for example). An IP address with a host ID of all ones represents that network's broadcast address (192.168.1.255 with a 24-bit subnet mask, for example).
Since such two IP addresses cannot be used as identifiers for individual hosts, the maximum possible number of hosts in the network is calculated as follows:
Table 3: Maximum possible number of hosts
| Subnet mask |
Host ID size |
Maximum number of hosts | ||
| 8 bit | 255.0.0.0 | 24 bit | 224 – 2 | 16777214 |
| 16 bit | 255.255.0.0 | 16 bit | 216 – 2 | 65534 |
| 24 bit | 255.255.255.0 | 8 bit | 28 – 2 | 254 |
| 29 bit | 255.255.255.248 | 3 bit | 23 – 2 | 6 |
Recording format
Since the mask is always a sequence of units to the left complemented by a series of zeros up to 32 bits, it is possible to simply specify the number of units rather than write the value of each octet. This is usually written as a '/' after the address and the number of unit bits in the mask.
For example, a 192.1.1.0 /25 address represents a 192.1.1.0 address with a mask of 255.255.255.128. Some possible subnet masks in both formats are shown in the following table.
Table 4: Alternative format for writing the subnet mask
| Subnet mask | Alternative recording format | Last octet (binary) | Last octet (decimal) |
| 255.255.255.0 | /24 | 0000 0000 | 0 |
| 255.255.255.128 | /25 | 1000 0000 | 128 |
| 255.255.255.192 | /26 | 1100 0000 | 192 |
| 255.255.255.224 | /27 | 1110 0000 | 224 |
| 255.255.255.240 | /28 | 1111 0000 | 240 |
| 255.255.255.248 | /29 | 1111 1000 | 248 |
| 255.255.255.252 | /30 | 1111 1100 | 252 |
Subnets can be used to divide a single network into multiple networks. In the example below, the network administrator creates two subnets to isolate a group of servers from other devices for security purposes.
In this example, the company network has an address of 192.168.1.0. The first three octets of the address (192.168.1) represent the network number, and the remaining octet represents the host ID, allowing a maximum of 28 - 2 = 254 hosts on the network.

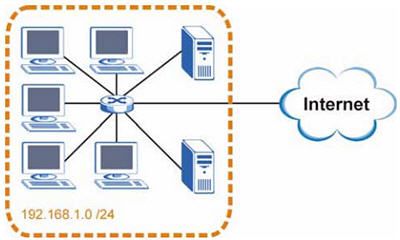

The company's network before it was divided into subnets is shown in the following diagram.
Figure 2: Example of subnet creation: before subnetting
To split the 192.168.1.0 network into two separate subnets, you can 'borrow' one bit from the host ID. In this case, the subnet mask will become 25-bit (255.255.255.128 or /25).
The 'borrowed' bit of the host ID can be either zero or one, which gives us two subnets: 192.168.1.0 /25 and 192.168.1.128 /25.

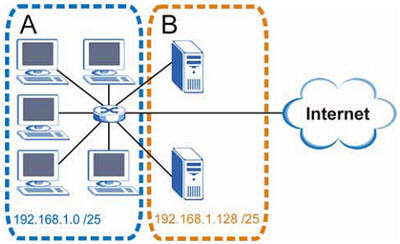

The company network after it has been divided into subnets is shown in the following figure. It now includes two subnets, A and B.
>
Figure 3: Example of subnetting: after division into subnets
In a 25-bit subnet, 7 bits are allocated to the host ID, so each subnet can have a maximum of 27 - 2 = 126 hosts (the host ID of all zeros is the subnet itself, and of all ones is the broadcast address for the subnet).
The address 192.168.1.0 with mask 255.255.255.128 is the address of subnet A, and 192.168.1.127 with mask 255.255.255.128 is its broadcast address. Thus, the smallest IP address that can be assigned to a valid host on subnet A is 192.168.1.1, and the largest is 192.168.1.126.
Similarly, the host ID range for subnet B is 192.168.1.129 to 192.168.1.254.
Example: four subnets
The previous example showed the use of a 25-bit subnet mask to divide a 24-bit address into two subnets. Similarly, dividing a 24-bit address into four subnets would require 'borrowing' two bits of the host ID to get four possible combinations (00, 01, 10, and 11). The subnet mask consists of 26 bits (11111111.11111111.11111111.11000000), that is 255.255.255.192.
Each subnet contains 6 bits of host ID, giving a total of 26 - 2 = 62 hosts for each subnet (the host ID of all zeros is the subnet itself, and of all ones is the broadcast address for the subnet).
Table 5. Subnet 1
| IP address/subnet mask | Network number | Last octet value |
| IP address (decimal) | 192.168.1. | 0 |
| IP address (binary) | 11000000.10101000.00000001. | 00000000 |
| Subnet mask (binary) | 11111111.11111111.11111111. | 11000000 |
| Subnet address 192.168.1.0 |
Smallest host ID: 192.168.1.1 | |
| Broadcast address 192.168.1.63 |
Largest host ID: 192.168.1.62 | |
Table 6. Subnet 2
| IP address/subnet mask | Network number | Last octet value |
| IP address (decimal) | 192.168.1. | 64 |
| IP address (binary) | 11000000.10101000.00000001. | 01000000 |
| Subnet mask (binary) | 11111111.11111111.11111111. | 11000000 |
| Subnet address 192.168.1.64 |
Smallest host ID: 192.168.1.65 | |
| Broadcast address 192.168.1.127 |
Largest host ID: 192.168.1.126 | |
Table 7. Subnet 3
| IP address/subnet mask | Network number | Last octet value |
| IP address (decimal) | 192.168.1. | 128 |
| IP address (binary) | 11000000.10101000.00000001. | 10000000 |
| Subnet mask (binary) | 11111111.11111111.11111111. | 11000000 |
| Subnet address 192.168.1.128 |
Smallest host ID: 192.168.1.129 | |
| Broadcast address 192.168.1.191 |
Largest host ID: 192.168.1.190 | |
Table 8. Subnet 4
| IP address/subnet mask | Network number | Last octet value |
| IP address (decimal) | 192.168.1. | 192 |
| IP address (binary) | 11000000.10101000.00000001. | 11000000 |
| Subnet mask (binary) | 11111111.11111111.11111111. | 11000000 |
| Subnet address 192.168.1.192 |
Smallest host ID: 192.168.1.193 | |
| Broadcast address 192.168.1.255 |
Largest host ID: 192.168.1.254 | |
Example: eight subnets
Similarly, a 27-bit mask (000, 001, 010, 011, 100, 101, 110, and 111) is used to create eight subnets.
The values of the last octet of the IP address for each subnet are shown in the following table.
Table 9. Eight subnets
| Subnet | Subnet address | First address | Last address | Broadcast address |
| 1 | 0 | 1 | 30 | 31 |
| 2 | 32 | 33 | 62 | 63 |
| 3 | 64 | 65 | 94 | 95 |
| 4 | 96 | 97 | 126 | 127 |
| 5 | 128 | 129 | 158 | 159 |
| 6 | 160 | 161 | 190 | 191 |
| 7 | 192 | 193 | 222 | 223 |
| 8 | 224 | 225 | 254 | 255 |
Subnetwork planning
The following table summarises the subnet planning for a network with a 24-bit network number.
Table 10. Subnetwork planning for a 24-bit numbered network
| Number of 'borrowed' bits of the host ID | Subnet mask | Number of subnets | Number of hosts in a subnet |
| 1 | 255.255.255.128 (/25) | 2 | 126 |
| 2 | 255.255.255.192 (/26) | 4 | 62 |
| 3 | 255.255.255.224 (/27) | 8 | 30 |
| 4 | 255.255.255.240 (/28) | 16 | 14 |
| 5 | 255.255.255.248 (/29) | 32 | 6 |
| 6 | 255.255.255.252 (/30) | 64 | 2 |
| 7 | 255.255.255.254 (/31) | 128 | 1 |
An example of calculating the number of subnets and hosts in a subnet based on IP address and subnet mask
Here is an example of calculating the number of subnets and hosts for the network 59.124.163.151/27.
/27 is the network prefix or netmask
In binary format 11111111 11111111 11111111 11100000
In decimal format, 255.255.255.224
In the fourth field (last octet) of 11100000, the first 3 bits define the number of subnets; in our example, 23 = 8.
In the fourth field (last octet) 11100000, the last 5 bits define the number of subnet hosts; in our example, 25 = 32.
The IP range of the first subnet is 0~31 (32 hosts), but 0 is a subnet, and 31 is for broadcast. Thus, the maximum number of hosts of this subnet is 30.
First subnet: 59.124.163.0
Broadcast address of the first subnet: 59.124.163.31
IP range of the second subnet is 59.124.163.32 to 59.124.163.63.
Second subnet: 59.124.163.32
Broadcast address of the second subnet: 59.124.163.63
We can calculate the IP range of the eighth subnet from 59.124.163.224 to 59.124.163.255
Eighth subnet: 59.124.163.224
Broadcast address of the eighth subnet: 59.124.163.255
In our example, the IP address 59.124.163.151 is on the fifth subnet.
Fifth subnet: 59.124.163.128/27
The IP range of the fifth subnet is 59.124.163.128 to 59.124.163.159.
Broadcast address of the fifth subnet: 59.124.163.159
NOTE: Important! For convenience in calculating subnet IP addresses and network masks, there are special online IP calculators (e.g. https://ipnet.tools/ip-calculator), as well as free programs/utilities for quick and easy calculation.
