Adding a router locally

The Keenetic app for Android and iOS mobile devices is designed easily manage Keenetic routers, whether it's a single device or the entire Whole Home Wi-Fi system, and their home network. Thanks to cloud technology, your Keenetic devices will be accessible not only from your home network, but also in any place where your smartphone or tablet has Internet access. A public IP address is not required.

The app will remember all your Keenetic devices and allow you to connect to them without passwords or logins from anywhere in the world. With the help of this application you can update their operating system, reconfigure Wi-Fi parameters and manage the built-in services of Keenetic devices, check the status and current speed of your Internet connection, turn on or off guest access point and control all home devices connected to your router or Wi-Fi system. For each of them you can limit the speed or completely deny access to the Internet, forward the necessary ports, set the content filtering profile with  SkyDNS or AdGuard DNS.

Features

The application is a part of the 'Keenetic Cloud' service and has:

  • User accounts: registration, account login via web browser or application. User data is not bound to a specific mobile phone.
  • Web-portal https://keenetic.cloud, which in future will mirror the functionality of the application.

Among the new features of the application you can note:

  • Adding Keenetic devices in any operating mode: Router, Adapter, Repeater/Extender, Access Point/Extender.
  • Automatic device search in the local network. IP address and management port aren't important, the application itself will find all the Keenetics.
  • Remotely add Keenetic by CID (CloudID). You can find the device's CID in the Web Configurator on the 'General system settings' page.
  • Compatible with the Whole Home Wi-Fi System. The application allows you to configure and manage the devices of the Wi-Fi system.
  • E-mail and push notifications about events. For example, we will notify you about your Keenetic's status change (online / offline) if your ISP has failed, and we will notify you again when Internet is back on. We plan to add more types of notifications in future.
  • Global statistics. The cloud retrieves and stores data from any group of devices or users for up to a month.
  • Family Profiles allow you to manage groups of connected devices that share a common owner. For example, you can disconnect all your child's gadgets from the Internet at once.
  • Locations. Keenetics on the same local network, included into a Wi-Fi system or not, are displayed as a group. You can manage several loacations from one account.
  • Network segments support, as in the web-interface, with all additional parameters.
  • End-2-end encryption between Keenetic devices, the cloud and the application using Curve25519 + AES technology, P2P sessions and key registry securely protect the transmitted data.
  • Compatible with Keenetic Whole Home Wi-Fi system. The application allows you to configure and manage the devices of the Wi-Fi system.

What is required to run the application?

  • Mobile device with iOS (Apple) or Android operating system;
  • Keenetic router (KN-xxxx) with KeeneticOS release version 3.00 and higher;
  • The 'Keenetic Cloud v2' service must be enabled in the router web configurator on the 'General system settings' page;
  • When remotely adding a Keenetic to the application via CID, the administrator password must be set on the router, otherwise the connection will not be established.

Installation and launching the application

Keenetic is available in appstore.png and googleplay.png

Install the application on your mobile device and run it.

The first time you start the application, you will see the license agreement. Click 'Accept' to continue.


Enter the e-mail to which the account will be registered and come up with a password. You can use these credentials to connect to the web portal https://keenetic.cloud too.


If you forgot your password, click 'Restore password'. An instruction to reset the password will be sent to the specified e-mail address.

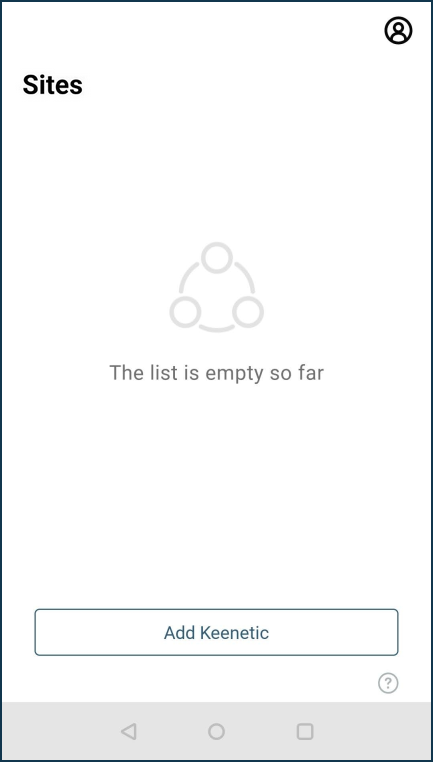

Click 'Add Keenetic'.


Adding your Keenetic locally

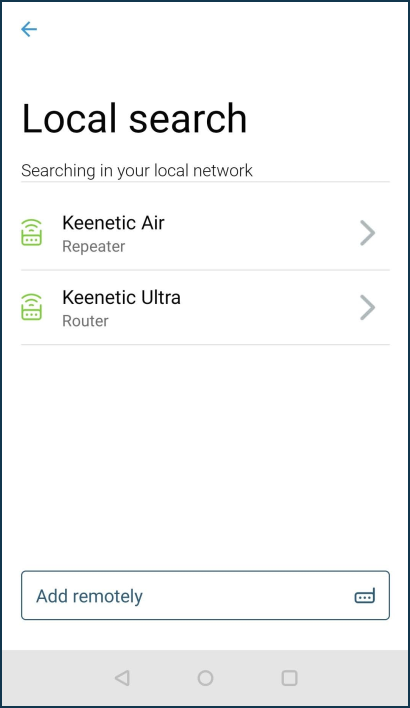

The application automatically searches for Keeentic devices on the local network.


Click on the Keenetic found on the local network you want to add.

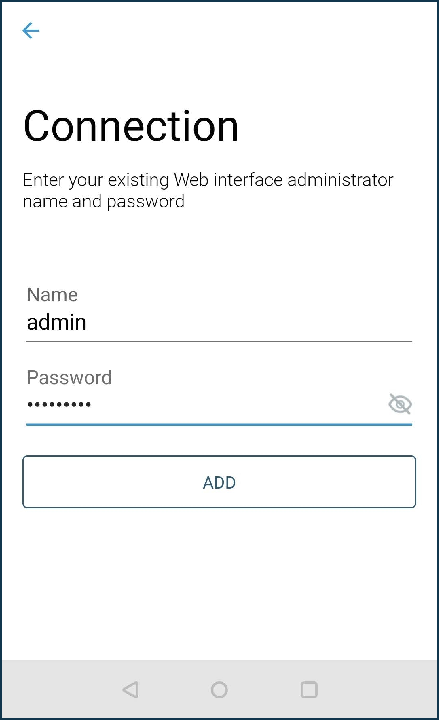

Then enter the administrator's name and password for this Keenetic, as in the web interface. Then click 'Add'.


If the connection to Keenetic is successful, it will be added to the application. Name the device (optional) and click 'Add' to confirm.



Add Keenetic by QR code

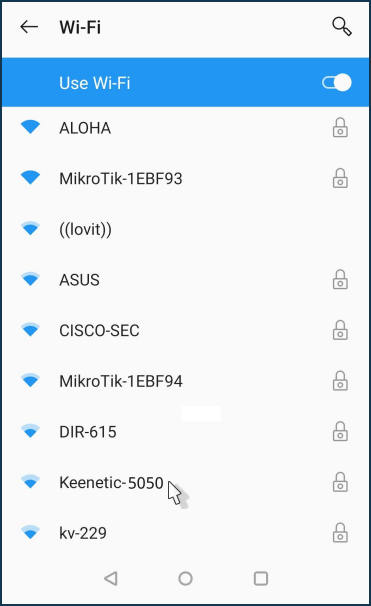

If your mobile phone  click "Connect by QR code", you can add Keenetic by first connecting to its Wi-Fi via QR code printed on the back label.


Allow the application to direct access the camera on your mobile device.

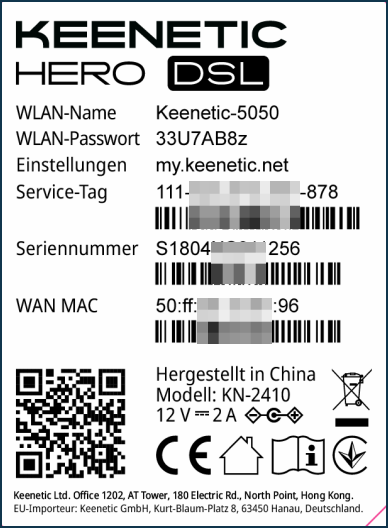

Then point the camera at the QR code on the back of the Keenetic case (back label).

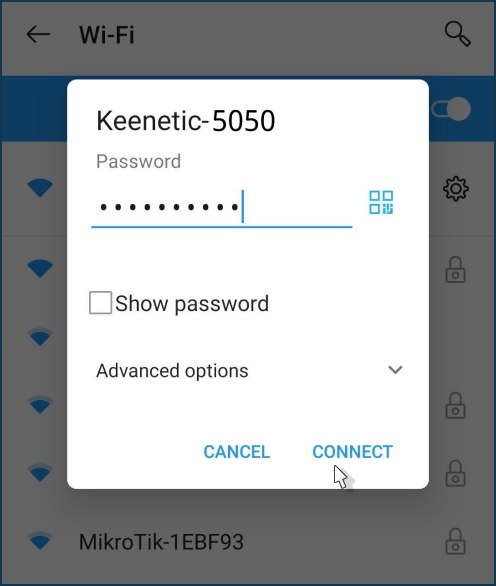

After a connection is established, you will see the message 'You have successfully connected to Wi-Fi'.


The application will automatically search for Keeentic in the local network.


Click on the found router on the local network.

To connect to the Keenetic settings, use the device administrator's username and password as in the web interface. Then click 'Add'.


If the connection to Keenetic is successful, it will be added to the application.

Add Keenetic by its CID (remote router adding).

It is possible to add Keenetic by CID (CloudID) in the application. You can find the CID in the web configurator on the 'General system settings' page, 'Keenetic Cloud service v2' section. To avoid mistakes when entering a CID, copy it to the clipboard.


NOTE: Important! When remotely adding a Keenetic to the application via CID, the administrator password must be set on the router, otherwise the connection will not be established.

In the application, on the 'Search for Keenetic' page, click 'Remotely' to search for the router by its CID.


Paste the CID from the clipboard or manually enter it and press 'Search'.


Then enter the administrator's name and password for this Keenetic, as in the web interface. Then click 'Add'.


If the connection to Keenetic is successful, it will be added to the application. Name the device (optional) and click 'Add' to confirm.


Basic settings

The 'Network list' page will show all the Keenetic devices added to the app.
Devices in one location are grouped. For example, if you use a wi-fi system, you will see all its members.
Click on the device you want to connect to.


Or click on hamburger-app.png to open the application menu.


The 'Home' page displays general information about the selected location: the volume of traffic sent and received by this location, all the Wi-Fi system members and standalone Keenetic devices of this location; you can get information about home network devices, create a family profile, manage embedded applications.


Clicking on the device name below will take you directly to the device settings.


For more information, please refer to the 'Setting up your Keenetic via the mobile application' article.

On the 'Account' page you can change your registration data (name, e-mail, notification language, country).


TIP: Tip: If for some reason you have not been able to add your Keenetic in the application, we recommend that you reset the device to the factory settings and then repeat the adding procedure.
